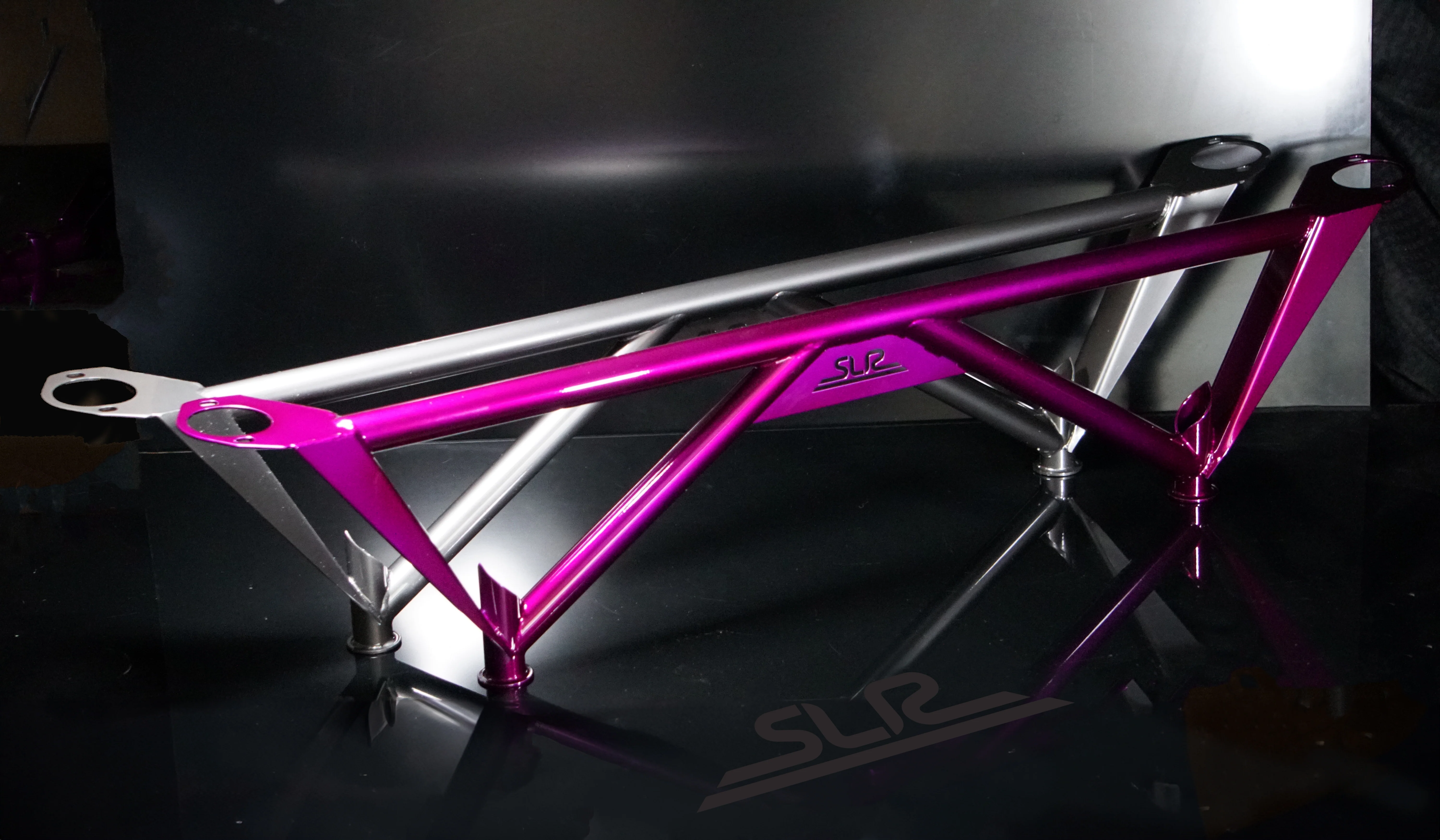

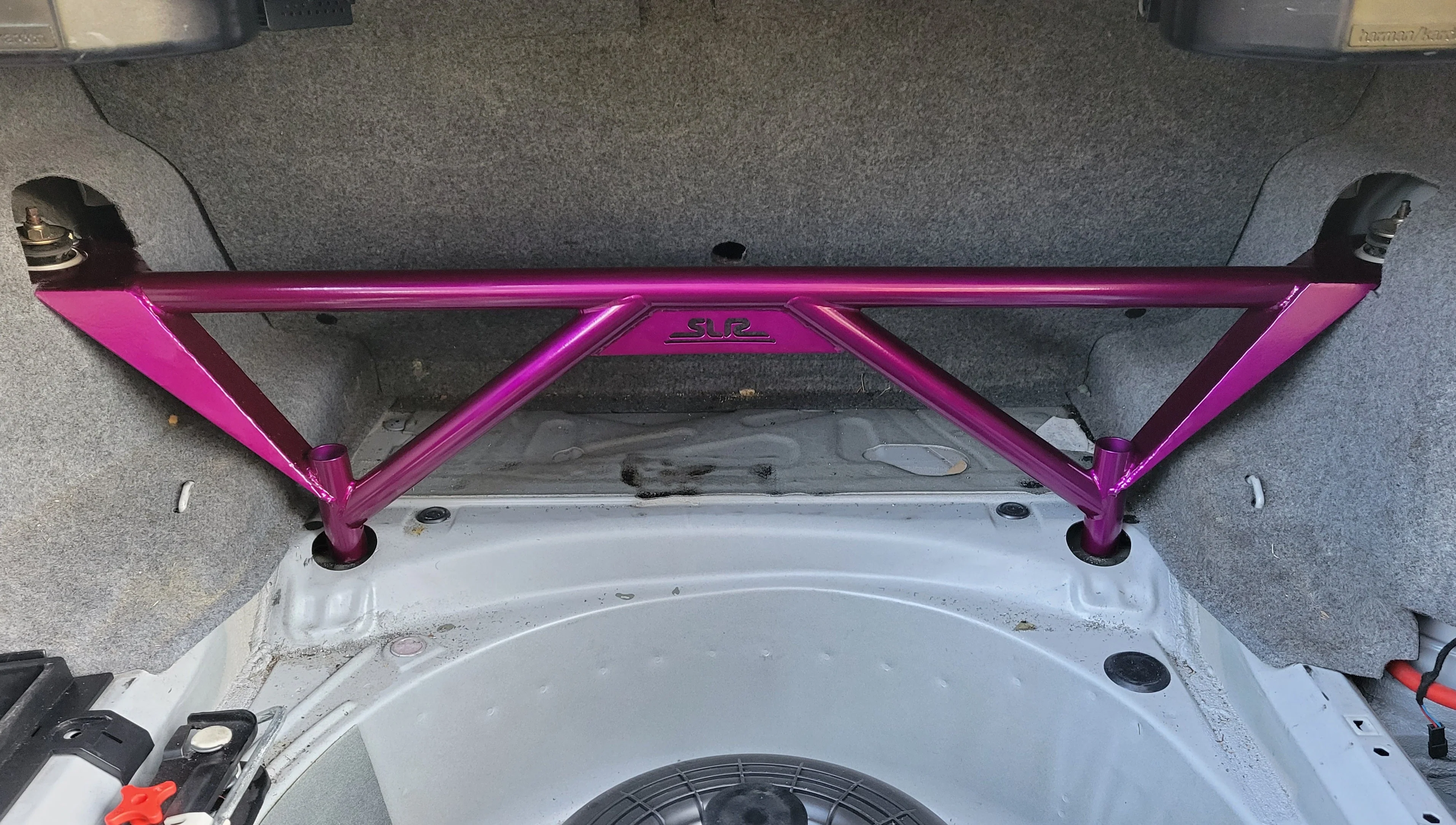

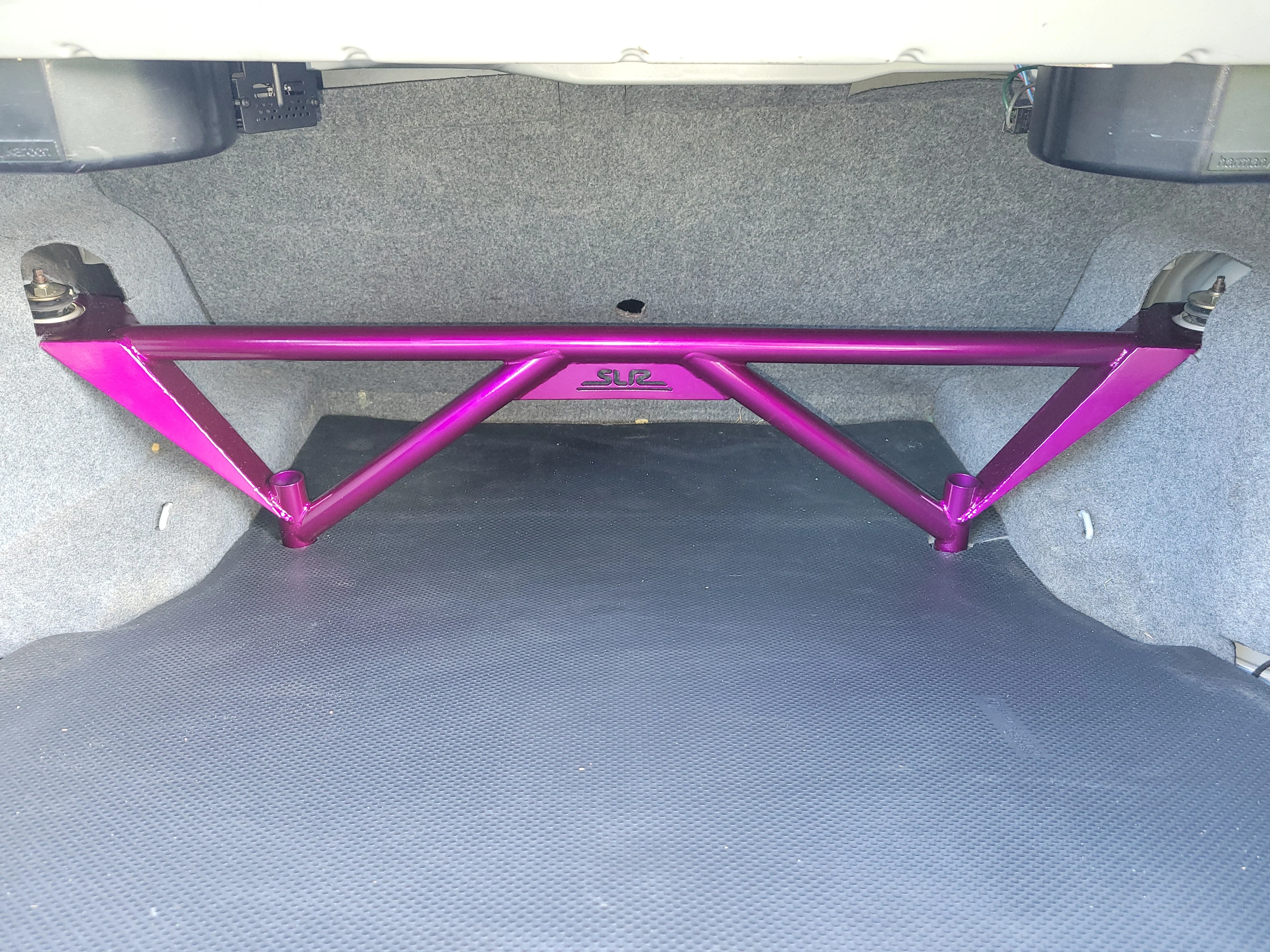

BMW Rear Floor Subframe to Shock Tower Brace
This rear floor to shock tower brace closely follows how BMW Motorsport reinforced the factory E46 GTR and touring car shells into the rear floor/subframe location.
This brace performs several functions:
- Rear floor reinforcement to combat stress fractures at subframe mount locations
- Rear shock tower reinforcement to allow coil-over-shock (aka true coilover) installations.
- Lateral reinforcement and structural replacement after notching the factory floor crossbeam for Quick-change differentials.
- Longitudinal torque load distribution for less overall floor flex under hard acceleration (basically it stops the rearward subframe points from pulling down as the differential applies torque through the subframe)
Includes hardware to bolt into the rear floor/subframe threaded tubes, or you can use your own M12 all-thread to allow through-bolting with subframe below, plus nuts in cross bar feet.
*E46 instructions are attached here as an image. On E36 you simply holesaw the two metal protrusions that are already on your floorboard and you are going to be in the right place versus E46 needing to measure.
**On E36 you don't need to drop your subframe to install. With a 12" drill bit you don't need to drop the subframe on E46 either.
- MANUFACTURED AND ASSEMBLED IN USA 🇺🇸 -
Original: $411.60
-70%$411.60
$123.48More Images
BMW Rear Floor Subframe to Shock Tower Brace
This rear floor to shock tower brace closely follows how BMW Motorsport reinforced the factory E46 GTR and touring car shells into the rear floor/subframe location.
This brace performs several functions:
- Rear floor reinforcement to combat stress fractures at subframe mount locations
- Rear shock tower reinforcement to allow coil-over-shock (aka true coilover) installations.
- Lateral reinforcement and structural replacement after notching the factory floor crossbeam for Quick-change differentials.
- Longitudinal torque load distribution for less overall floor flex under hard acceleration (basically it stops the rearward subframe points from pulling down as the differential applies torque through the subframe)
Includes hardware to bolt into the rear floor/subframe threaded tubes, or you can use your own M12 all-thread to allow through-bolting with subframe below, plus nuts in cross bar feet.
*E46 instructions are attached here as an image. On E36 you simply holesaw the two metal protrusions that are already on your floorboard and you are going to be in the right place versus E46 needing to measure.
**On E36 you don't need to drop your subframe to install. With a 12" drill bit you don't need to drop the subframe on E46 either.
- MANUFACTURED AND ASSEMBLED IN USA 🇺🇸 -
